DIMLUX XTREME
SERIES LED 500W +NIR

Light Output Total
(PPF 350-800nm)

1550 μmol/s

INTRODUCING THE MOST POWERFUL AND SMART LED
GROW LIGHT ON THE MARKET! THE DIMLUX XTREME SERIES LED.

INTRODUCING THE MOST
POWERFUL AND SMART LED
GROW LIGHT ON THE MARKET!

DIMLUX XTREME SERIES LED 500W +NIR.

12 Years ago, Dimlux introduced the first ever groundbreaking remote controlled HPS ballast in combination with the Maxi Controller; The Dimlux Xtreme Series. Today, Dimlux introduces the smartest, most efficient and most powerful grow light on the market, the Dimlux Xtreme Series LED!

INTRODUCING THE MOST
POWERFUL AND SMART LED
GROW LIGHT ON THE MARKET!

DIMLUX XTREME SERIES LED 500W +NIR.

12 Years ago, Dimlux introduced the first ever groundbreaking remote controlled HPS ballast in combination with the Maxi Controller; The Dimlux Xtreme Series. Today, Dimlux introduces the smartest, most efficient and most powerful grow light on the market, the Dimlux Xtreme Series LED!

Patented LED Technology

With this innovative LED fixture, Dimlux sets a benchmark for horticultural lighting. With patented technology, advances in LED technology, and optimal thermal design, the Dimlux Xtreme Series LED will be the preferred option offering significant return on investment to cultivators.

The Dimlux Xtreme Series LED produces ultra-high levels of PPFD, evenly spread over a 1.5×1.5 m grow area, with a full grow spectrum, producing consistently high quality & high yield indoor crops.

The Dimlux Xtreme Series LED can be dimmed without losing efficiency. The spectrum and output power can be programmed depending on the time of day and the growing stage of the crop.

PhytoVegSpec® Indoor +NIR

Our adjustable PhytoVegSpec® Indoor +NIR grow spectrum combines full control over light quality (spectral flexibility) and quantity (intensity and DLI) ensuring a uniform spread and even light distribution with extreme penetration into the canopy.

NIR stands for Near InfraRed spectroscopy, and it refers to the analytical technique of using near-infrared radiation to analyse samples for compositional or characteristic traits.

NIR is a region of the electromagnetic spectrum that has unique properties which make it very useful for characterizing materials. The NIR region is from 700 to 2500 nm. Light in this region interacts with OH, NH and CH bonds and certain wavelengths (frequencies) are associated with each bond type.

BUYING GUIDE WHY ARE THE DIMLUX EXTREME SERIES LED
SUPERIOR AND WETHER OR NOT TO BUY EXTRA NIR

We understand that it can be difficult to determine which LED grow light is right for you.
That’s why we’ve created an easy table to help you make the right choice.

LCD DISPLAY

All settings, status, errors and spectra shown on LCD display

Patented

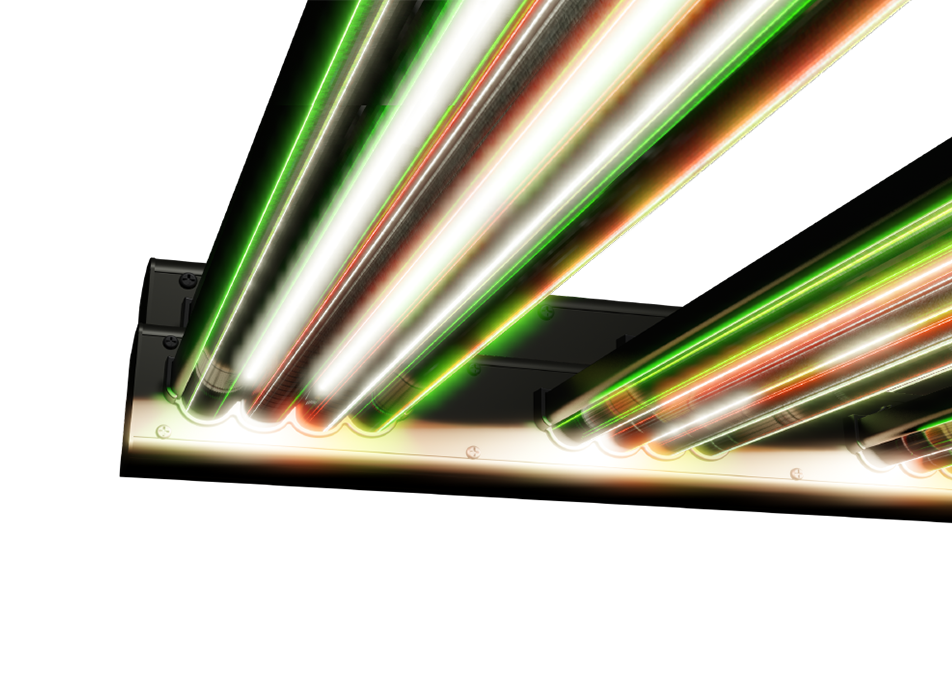

Deep Penetration Ultra High Transmittance Lens and Auxiliary Light Pipe Multi Color 65k

Patented Auxiliary Light Pipe Multi Color 65k

Auxiliary RGB LEDs with over 65k colors can be used as supplemental light and can be used as green work light in the dark phase. The work light can be automatically be switched on by the internal radar proximity sensor.

SPECIFICATIONS XTREME SERIES 500W LED +NIR

XTRME SERIES

500W (+NIR)

Light Source

LED 500W

Spectrum Adjustable PhytoVegSpec® Indoor

Light Output (PPF)

1500 μmol/s

Light Output Total (PPF 350-800nm)

1571 μmol/s

PAR Photon Efficacy (400-700nm)

2.81 μmol/J @ 230-240V AC

Total Photon Efficacy (350-800nm)

2.91 μmol/J @ 230-240V AC

AC Input Power

540W @ 230-240V AC

Spectrum Adjustable PhytoVegSpec® Indoor +NIR

Light Output (PPF)

1420 μmol/s

Light Output Total (PPF 350-800nm)

1550 μmol/s

PAR Photon Efficacy (400-700nm)

2.67 μmol/J @ 230-240V AC

Total Photon Efficacy (350-800nm)

2.87 μmol/J @ 230-240V AC

AC Input Power

540W @ 230-240V AC

AC Input Voltage

120-277V AC, 50/60Hz

Beam Angle

90° × 120°

Optics

Patented Deep Penetration Ultra High Transmittance Lens

Auxiliary Light

Patented Light Pipe Multi Color 65k

Proximity sensor

Doppler Radar

Mounting Height Above Canopy

20‒50cm / 7.8-19.7 in

Thermal Management

Passive

Max. Ambient Temperature

40°C / 105°F

Control

By Maxi Controller or Internal Controller

Smartports (3x)

Interlink, Plant Temperature Sensor, Light Sensor

Display For Spectrum and GUI

1.54" 65k Color IPS

Total Harmonic Distortion (THD)

< 10%

Lifetime L90

> 50,000h

IP Rating

IP65

Certifications

CE, UL 8800, UL 1598 Wet Location, DLC

Warranty

5 Year Standard

Measurements

833x810x57mm

32.8x31.9x2.2 inch

Weight

13,3kg / 29.32 lbs

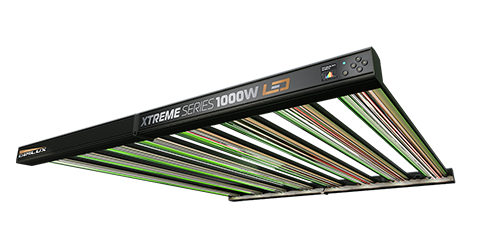

DIMLUX XTREME LED 1000W

Light Source LED 1000W

  •  Light Output PPF 3035 μmol/s
  • AC Input Power 1065W @ 230V AC
  • Optics: Patented Deep Penetration Ultra High Transmittance Lens
  • Additive Light: Patented Light Pipe Multi Color 65k
  • 5 Year Standard Warranty

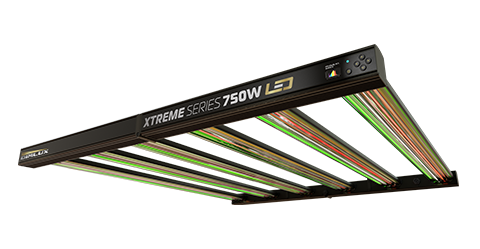

DIMLUX XTREME LED 750W

Light Source LED 750W

  •  Light Output PPF 2276 μmol/s
  • AC Input Power 799W @ 230V AC
  • Optics: Patented Deep Penetration Ultra High Transmittance Lens
  • Additive Light: Patented Light Pipe Multi Color 65k
  • 5 Year Standard Warranty

DIMLUX XTREME LED 500W

Light Source LED 500W

  •  Light Output PPF 1500 μmol/s
  • AC Input Power 540W @ 230V AC
  • Optics: Patented Deep Penetration Ultra High Transmittance Lens
  • Additive Light: Patented Light Pipe Multi Color 65k
  • 5 Year Standard Warranty

THE FUTURE OF GROWING
JUST GOT BRIGHTER.

AN ULTIMATE RANGE OF LED FIXTURES TO MEET EVERYONE’S NEEDS
